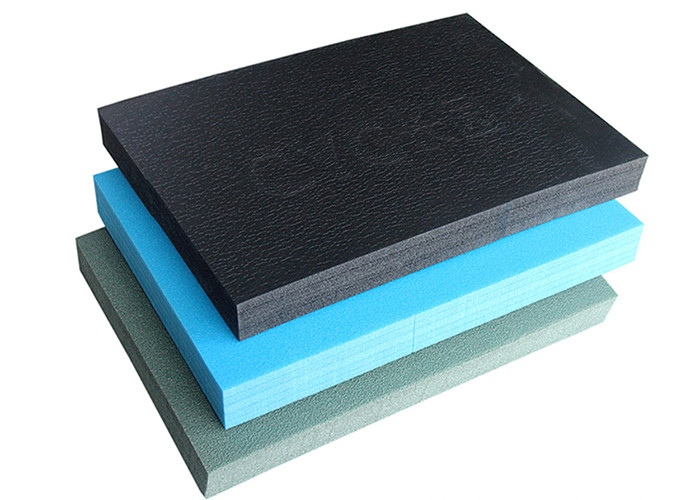

Automotive Acoustic Crosslinked Polyethylene IXPE/ XPE Foam
1. Product description
High quality noise resistant shock absorption XPE foam for floor
The two major types of crosslinked PE foam are:
1. Irrdiated Crosslinked polyethylene foam (IXPE foam)is very fine
celled microcellular foam. Irradiated
Crosslinked foam is used for medical applications, heart forming,
and high end protective
Packaging and consumer products. This foam can actually be printed
on very clearly.
2. Chemically crosslinked foam(XPE foam) also has good physical
properties, but has a larger more random cell structure. Chemically
crosslinked foam can also be used for packaging, heat forming and a
Large variety of applications. These foams are available in a wide
variety of formulations including EVA modified to make the foams
more pliable, as well as with fire retardants. Crosslinked foams
are available in both rolls and sheets form, and in a variety of
colors, as well as natural, white and black.
Feature:
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Elastic and flexibility
7. Shock absorption
2. Advantages
1. Heat Insulation:
Singlefoaming structure can reduce the loss of heat between air
convections, suitable for making heat preservation pipes and
boards. Good anti-dew capability, suitable for humid environments
like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability: Semi-hard quality foams have good rebound
capabilities after strong impact, suitable for the packing of
instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound
absorption and insulation parts of automobiles, electro-motors and
other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density,
suitable for making deep interior parts like shaping in vacuum and
hot environments, like the air conditioning vaporizing tank of
automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be
mixed with many other materials. It has a wide developing area as a
new environmentally-safe material.
3. Our services
Factory direct selling with competitve price, sooner leadtime,
better customized services.
Samples in stock can be arranged in one working day.
4. Company info
CYG TEFA Co., Ltd. Is a subsidiary of Shenzhen Changyuan Croup Co.,
Ltd (stoke code, 600525).
CYG TEFA Co., Ltd, a national high-tech company, established in
December of 2002.; We're the biggest and the most professional
irradiation crosslinked polyethylene conductive foam manufacturer
in China and has the most complete crosslinked polyethylene foam
products. Now we have 3 production bases in Shenzhen, Hangzhou,
Chongqing, 8 production lines of all kinds, with annual production
capacity of 5000 tons; Our main products are Crosslinked PE foam
material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray,
ESD packing material; Beach mat, camping mat, sleeping mat, yoga
mat; Etc.
Company website: www.cygtefa.com
5. Applicable range:
Car, medical applications, building, air conditioner, heart
forming, and high end protective packaging
| Density | 200 ± 30 | 125 ± 15 | 100 ± 10 | 66.7 ± 8 | 50 ± 6 | 40 ± 4 | 33.3 ± 3 |
| Hardness | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 2-30 | 18-25 |
Water absorption
(23 ° C 24h)g/ cm ³ | ≤ 0.02 | ≤ 0.02 | ≤ 0.03 | ≤ 0.03 | ≤ 0.04 | ≤ 0.04 | ≤ 0.05 |
| Thermal conductivity | ≤ 0.092 | ≤ 0.082 | ≤ 0.07 | ≤ 0.062 | ≤ 0.053 | ≤ 0.047 | ≤ 0.041 |
| Tensile strength(mpa) | L | ≥ 1.35 | ≥ 1.12 | ≥ 0.88 | ≥ 0.68 | ≥ 0.39 | ≥ 0.33 | ≥ 0.25 |
| M | ≥ 1.08 | ≥ 0.89 | ≥ 0.71 | ≥ 0.56 | ≥ 0.33 | ≥ 0.25 | ≥ 0.20 |
| Tesibility | L | ≥ 260 | ≥ 230 | ≥ 210 | ≥ 190 | ≥ 170 | ≥ 160 | ≥ 140 |
| M | ≥ 220 | ≥ 200 | ≥ 185 | ≥ 170 | ≥ 150 | ≥ 135 | ≥ 130 |
| Tearing strength | L | ≥ 5.90 | ≥ 4.80 | ≥ 3.60 | ≥ 2.80 | ≥ 1.80 | ≥ 1.60 | ≥ 1.35 |
| M | ≥ 7.10 | ≥ 5.40 | ≥ 4.00 | ≥ 3.30 | ≥ 2.30 | ≥ 2.00 | ≥ 1.70 |
