High Quality Noise Resistant Shock Absorption XPE Foam for Building
Floor
Product description

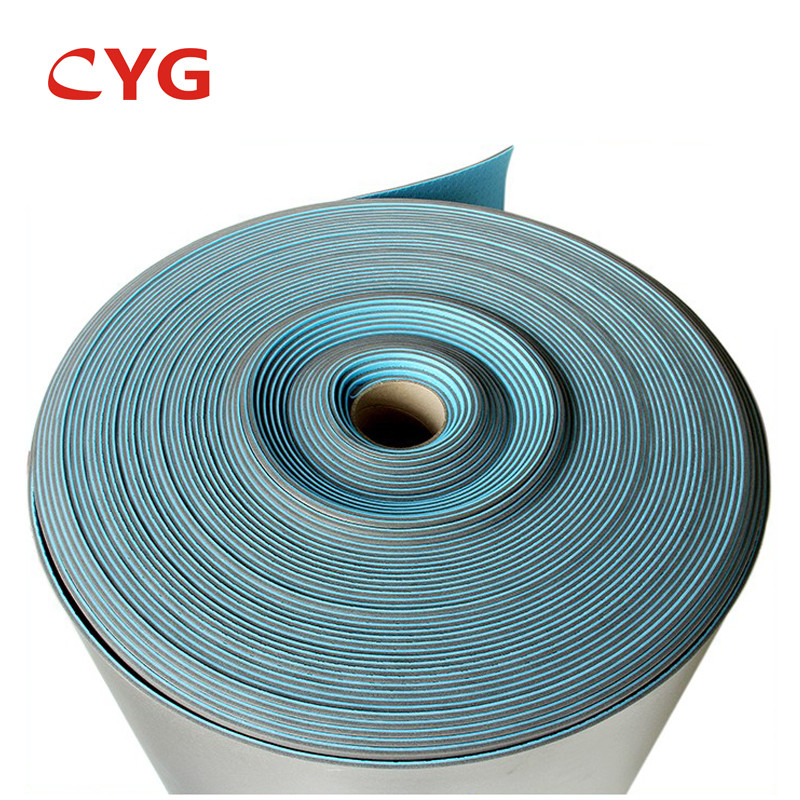

High quality noise resistant shock absorption XPE foam for floor
The two major types of crosslinked PE foam are:
1. Irrdiated Crosslinked polyethylene foam (IXPE foam)is very fine
celled microcellular foam. Irradiated
Crosslinked foam is used for medical applications, heart forming,
and high end protective
Packaging and consumer products. This foam can actually be printed
on very clearly.
2. Chemically crosslinked foam(XPE foam) also has good physical
properties, but has a larger more random cell structure. Chemically
crosslinked foam can also be used for packaging, heat forming and a
Large variety of applications. These foams are available in a wide
variety of formulations including EVA modified to make the foams
more pliable, as well as with fire retardants. Crosslinked foams
are available in both rolls and sheets form, and in a variety of
colors, as well as natural, white and black.
Specification
| Test item | Items |
| 5 Times | 8 Times | 10 Times | 15 Times | 20 Times | 25 Times | 30 Times | 35 Times |
| Density kg/m3 | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 |
Shore Hardness | 60~70 | 50~60 | 45~50 | 35~45 | 30~35 | 25~30 | 18~25 | 13~18 |
| Water absorbtion (23℃±2℃,24h)g/cm2 | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 |
Heat conductivity K value w/m.k | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.045 | ≤0.040 | ≤0.040 |
Feature
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Elastic and flexibility
7. Shock absorption
2. Advantages
1. Heat Insulation:
Singlefoaming structure can reduce the loss of heat between air
convections, suitable for making heat preservation pipes and
boards. Good anti-dew capability, suitable for humid environments
like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability: Semi-hard quality foams have good rebound
capabilities after strong impact, suitable for the packing of
instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound
absorption and insulation parts of automobiles, electro-motors and
other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density,
suitable for making deep interior parts like shaping in vacuum and
hot environments, like the air conditioning vaporizing tank of
automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be
mixed with many other materials. It has a wide developing area as a
new environmentally-safe material.
Company Information
Our services
Factory direct selling with competitive price, sooner leadtime,
better customized services.
Samples in stock can be arranged in one working day.
Company info.
CYG TEFA Co., Ltd, a subsidiary of CYG Group (stock code:
600525).Established in 2002, CYG TEFA Co., Ltd has 14 years of
production experience. We're the biggest and the most professional
irradiation cross-linked polyethylene conductive foam manufacturer
in China and has the most complete cross-linked polyethylene foam
products.
Our main products are cross-linked PE foam material, IXPE foam, XPE
foam, conductive IXPE foam; ESD foam tray, ESD packing material;
Beach mat, camping mat, sleeping mat, yoga mat etc. Now, we have 2
factories and 17 production lines.
