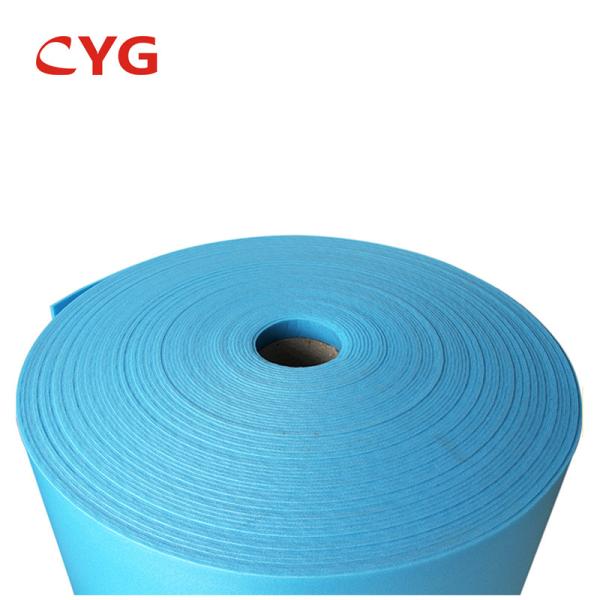

Automotive Interior Pe Foam Polyethylene Board
| PE Foam Brief Introduction |
| Product name | Xpe foam | Ixpe foam |
| Material | Ldpe,(low density polyethylene foam) Ac foaming agent,cross-linking agent,etc | Ldpe,(low density polyethylene foam) Ac foaming agent,etc |
| Structure | Closed cell,cross-linked(by cross-linking agent) | Closed cell,cross-linked(irradiated) |
| Density | 25~330 kg/m3 | 25~330 kg/m3 |
| One layer thickness | 2mm~3mm(Density:67~330kg/m3) | 0.5~10mm(Density:25~330kg/m3) |
| Laminated thickness | 1)10mm(25~100kg/m3) 2)12mm(25~40kg/m3) 3)customized | Customized |
| Laminated with | Pe foam/Pure Alu/Aluminizing |
| Size | customized |
| Color | Normal is black,white,gray. Other color can be customized. |
| Shape | Roll or sheet |
| Adhesive | Available |
| Fire resistance | Available (UL94-1) |
CYG TEFA LEADING IN AUTOMOTIVE
- Insulation on the dashboard, door panels, door armrests
- Lightweight product solution for automobile air duct
- Using for head pillow case by PIP filling&foaming technology
- Waterproof and soundproof car door material
- As damping and soundproofing foam products around the front of the
cockpit
- Excellent Roof / Head Lining thermal insulation solutions
- Automotive NVH products solutions
Specifications
- Foam Type: IXPE FOAM / IXLPE FOAM
|
| Property | Standard | Unit | Value |
| Density | - | Kg/m³ | 125.00 |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.97~1.06 |
| Longitudinal | | | 1.30~1.35 |
| Elongation | Transverse | ISO-1798 | % | 259.50~274.20 |
| Longitudinal | | | 238.20~251.90 |
| Tearing Strength | Transverse | ISO-8067
| Kn/m | 5.82~5.95 |
| Longitudinal | | | 6.53~6.88 |
| Operating Temperature Range | Internal | °C | (-40,+80) |
| Water Absorption % Volume (Maximum) | Internal | % | 0.20 |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.095 |
| Shore - C | ASTM D2240 | °C | 55 |
| Flammability | FMVSS302 | mm/min | - |
Applications:
1. Acoustic material for floor
Material: XPE, IXPE Foam
Density: 10B (100 kg/m³), 15B (66 kg/m³)
Thickness: 5mm, 6mm, 7mm
Processing method: Heat pressing and seaming
Advantage: It's used in the middle layer of car floor. The most
common product is combination of PVC materials. Easy to process and
laminate with other materials to enhance waterproof and insulating
properties.
2. Automobile sunshade Board Material
Material: XPE, IXPE Foam
Density: 20B (50 kg/m³), 25B (40 kg/m³), 30B (33 kg/m³)
Thickness: 5mm
Processing method: Heat pressing
Advantage: Excellent insulation materials and building-up
properties.
3. Thermal insulation and soundproofing material for car
Material: XPE
Density: 30B (33 kg/m³)
Thickness: 3mm, 4mm, 5mm
Processing method: Adhesive (Included)
Advantage: Adhesive foam for easy decroration, have good soundproof
and thermal insulation performance. Fire retardant is available.
4. Ceiling vibration damping material for car roof liner
Material: IXPE, IXPP
Density: 15B(66 kg/m³)
Thickness: 4mm, 5mm
Processing method: Heat pressing & die cutting
Advantage: Processing with flexible IXPE or IXPP foam material to prevent vibration and reduce the heat.
5. Damping pad for car trunk
Material: IXPE, XPE Foam
Density: 30B (33 kg/m³), 35B(28 kg/m³)
Thickness: 3mm, 4mm, 5mm, 6mm
Processing method: Heat pressing
Advantage: Extremely easy to cut into the size you want with
shockproof protection and noise reduction properties.
6. Sound deadening material for car door panels
Material: XPE, IXPE Foam
Density: 8B (125 kg/m³), 10B (100 kg/m³), 15B (66 kg/m³), 20B (50
kg/m³)
Thickness: 2mm, 3mm, 4mm
Application: Door waterproof strip, water-repellent film
Processing method: Thermal vacuum forming
Advantage: The closed cell foam structure provides noise reduction
and excellent waterproof property.
Qur services
Factory direct selling with competitve price, sooner
leadtime,better customized services.
Samples in stock can be arranged in one working day.
Company info
CYG TEFA Co.,Ltd is a subsidiary of CYG Group Ltd (stock
code:600525).
CYG TEFA Co.,Ltd has 17 years of production experience.We're the
biggest and the most professional irradiation crosslinked
polyethylene conductive foam manufacturer in China and has the most
complete crosslinked polyethylene foam products. Our main products
are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive
IXPE foam; ESD foam tray, ESD packing material; Beach mat,camping
mat,sleeping mat, yoga mat;etc
