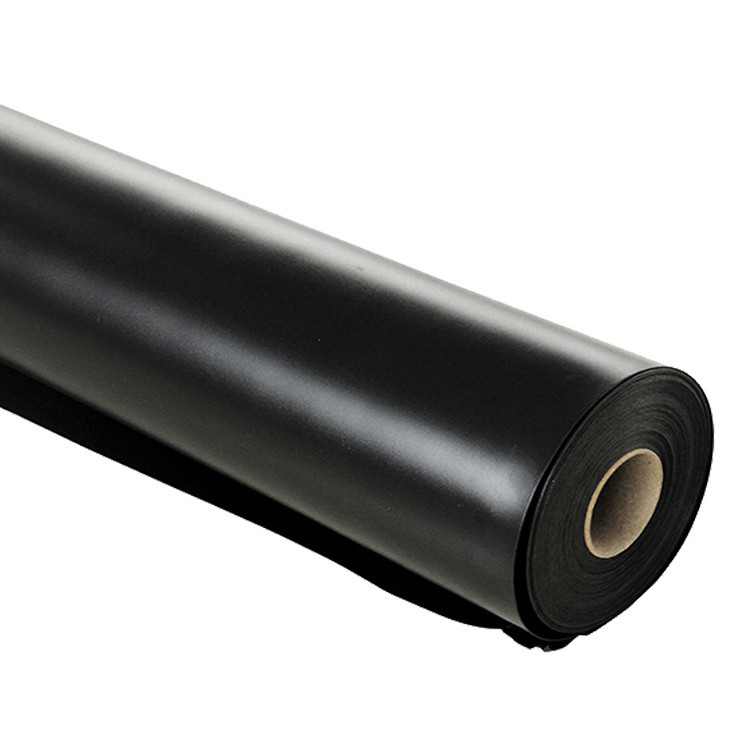

Cross Linked Low Density Polyethylene Ldpe Customized Xlpe Foam
Sheet
| PE Foam Brief Introduction |
| Product name | Xpe foam | Ixpe foam |
| Material | Ldpe,(low density polyethylene foam) Ac foaming agent,cross-linking agent,etc | Ldpe,(low density polyethylene foam) Ac foaming agent,etc |
| Structure | Closed cell,cross-linked(by cross-linking agent) | Closed cell,cross-linked(irradiated) |
| Density | 25~330 kg/m3 | 25~330 kg/m3 |
| One layer thickness | 2mm~3mm(Density:67~330kg/m3) | 0.5~10mm(Density:25~330kg/m3) |
| Laminated thickness | 1)10mm(25~100kg/m3) 2)12mm(25~40kg/m3) 3)customized | Customized |
| Laminated with | Pe foam/Pure Alu/Aluminizing |
| Size | customized |
| Color | Normal is black,white,gray. Other color can be customized. |
| Shape | Roll or sheet |
| Adhesive | Available |
| Fire resistance | Available (UL94-1) |
Features
1) Waterproof,clean, light, flexible,non-absorbent surface
2) Recyclable, environmentally friendly
3) Easily install, cut, stapled, nailed or glued into place
4) Effective in extreme temperatures both hot and cold
5) Safe to handle with no special clothing or breathing Equipment
6) Easy to cut and install, without the protective clothing or
respirators during installment.
7) Does not support the growth of fungus or mold.
8) Vapor and radon retarder
9) Not affected by moisture or humidity
Advantages
1) Thickness: 0.5 or 1 - 60mm
2) Size: 1000mm x 2000mm, 1000mm x 1500mm
3) Expanding times: 8 times, 10 times, 14 times, 18 times, 20 time,
30times, 45 times and so on
4) Low density, light weight and good thermal insulation
5) Waterproof, cushioning and elastic
6) Colors: White, gray, red, blue.
Specifications
- Foam Type: XPE FOAM / XLPE FOAM
|
| Property | Standard | Unit | Value |
| Density | - | Kg/m³ | 50.00 |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.33~0.36 |
| Longitudinal | 0.48~0.50 |
| Elongation | Transverse | ISO-1798 | % | 95.20~102.10 |
| Longitudinal | 100.20~109.10 |
| Tearing Strength | Transverse | ISO-8067
| Kn/m | 1.97~2.14 |
| Longitudinal | 2.48~2.71 |
| Compression 25% | ISO-3386-1 | kPa | 58.00 |
| Compression 40% | ISO-3386-1 | kPa | 95.60 |
| Compression 50% | ISO-3386-1 | kPa | 132.00 |
| Compression Set 25% 0.5H | ISO-1856 | % | 13.22 |
| Compression Set 25% 24H | ISO-1856 | % | 4.68 |
| Operating Temperature Range | Internal | °C | (-40,+80) |
| Water Absorption % Volume (Maximum) | Internal | % | 0.40 |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.055 |
| Shore - C | ASTM D2240 | °C | 30 |
| Flammability | FMVSS302 | mm/min | - |
Additional Information
● All tests were carried out in 23°C ± 2.
● Data represents typical values measured on a 4mm thick specimen
and should be considered as guidelines only.
MOQ
1) 1mm-3mm thickness, MOQ3000sqm
2)4mm-7mm thickness, MOQ 2000 sqm
3)Thickness more than 8mm,MOQ 1000 sqm
Delivery date from the Date of Order:15-20 workingdays
Our services
Factory direct selling with competitve price, sooner
leadtime,better customized services.
Samples in stock can be arranged in one working day.
Company info
CYG TEFA Co., Ltd, a national high-tech company, established in
December of 2002. Now we have 2 production bases in Shenzhen,
Hangzhou, with annual production capacity of 6000 tons;
We are the leading manufacturer for XPE , IXPE foam,ESD foam for
more than 17 years, all our products can be used for thermal
insulation,waterproof,shockproof,etc. and also our products get the
UL, ISO, SGS, Rohs, Reach , CE approval. and we have 17 production
lines for production.Hope to cooperate with you.
- Management control system: Kingdee / OA / Oracle
IXPP project (three years: Proposal stage - Develop - Sampling -
Approved product- Small quantity supply for testing
11 employee
Investment rate: 4% to 10%
Responsible for : Improving available product / Technology
improving / New product development / New devices.
