    Acoustic Construction Heat Insulation Foam Xlpe Aluminum Thermal Reflective Foil

    Ask Lasest Price
    Brand Name : CYG
    Model Number : CYG-2369
    Certification : ISO9001, ISO14001, IATF16949,FMVSS 302,UL94 HF-1,RoHS,CE,etc.
    Price : USD 0.3~0.9 SQM
    Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 500 tons per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

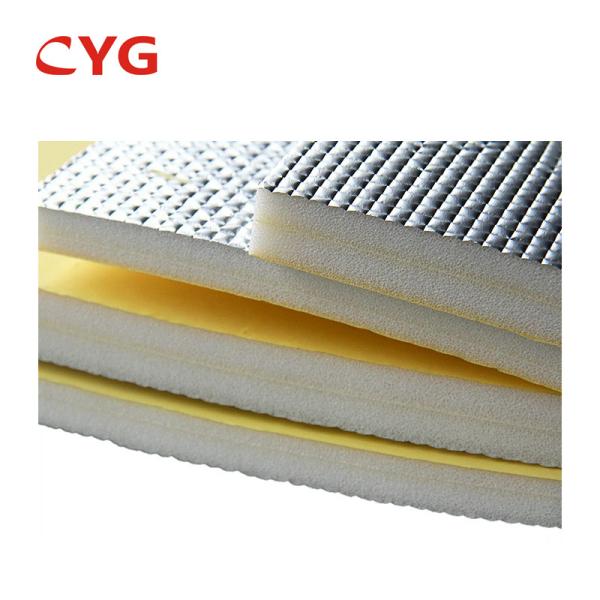

    Acoustic Construction Heat Insulation Foam Xlpe Aluminum Thermal Reflective Foil

    Xlpe Foam Aluminum Thermal Reflective Foil Insulation Acoustic Foam


    XPE / XLPE insulation pe foam is made by closed cell chemical cross-linked polyethylene foam, adhesive backing and faced with pure aluminum foil and it's flame retardant as well. Widely used in HVAC duct / pipe insulation.

    CYG PE foam for ducts are manufactured at our state-of-the-art factory as per customer requirements. All the accessories for example fittings, attachments, components, and other goods are manufactured from the finest grade of material and cutting edge technology. CYG quality controllers check each and in details on well defined quality parameters. With competitive prices, if you need to be, the offered range of ducting is also facilitated with sound proofing and high degree insulation.


    Specification


    • Foam Type: XPE FOAM / XLPE FOAM
    PropertyStandardUnitValue
    Density-Kg/m³100.00
    Tensile StrengthTransverseISO-1798MPa0.89~0.90
    Longitudinal0.98~1.04
    ElongationTransverseISO-1798%130.30~148.50
    Longitudinal130.00~158.20
    Tearing StrengthTransverse

    ISO-8067


    Kn/m5.87~6.00
    Longitudinal6.22~6.54
    Compression 25%ISO-3386-1kPa185.20
    Compression 40%ISO-3386-1kPa252.40
    Compression 50%ISO-3386-1kPa316.80
    Compression Set 25% 0.5HISO-1856%7.10
    Compression Set 25% 24HISO-1856%3.30
    Operating Temperature RangeInternal°C(-40,+80)
    Water Absorption % Volume (Maximum)Internal%0.30
    Thermal ConductivityJIS A1412-2W/mK0.073
    Shore - CASTM D2240°C55
    FlammabilityFMVSS302mm/min-

    Additional Information

    ● All tests were carried out in 23°C ± 2.

    ● Data represents typical values measured on a 8mm thick specimen and should be considered as guidelines only.


    Advantages:


    • High foaming rate
    • Low density
    • Good elasticity
    • Good toughness
    • Thermal insulation
    • Energy saving
    • Noise reduction
    • Sound insulation
    • Anti-condensation
    • Corrosion and aging
    • Convenient

    Features:


    • Saves Energy: retain the temperature of the air they are transporting, reducing energy wastage.
    • Prevents Condensation on Ducts: XPE insulation provides a solid cover around the air ducts.
    • Reduces Noise Transmitted Indoors: XPE can carry sound waves all around the house and carry sounds across rooms such as the noise of the furnace turning on in phases as well.
    • Hot-dipped galvanized steel sheets of lock-forming quality are used for the manufacturing of standard ducts.
    • Ducts are also available in both, stainless steel and Aluminum.
    • All straight ducts have beading all along at a distance of 300 mm between them for reinforce.

    Application

    · Metal & Steel Buildings

    · Homes

    · Roof Underlayments

    · Cathedral Ceilings

    · Crawl Spaces

    · Hot Water Heaters

    · Basement Walls

    · Floors

    · Temperature sensitive storage areas


    Our Company

    CYG TEFA is the earliest PE foam manufacturing with scale production in China since 2002.Mainly produce XPE FOAM,IXPE FOAM,IXPP FOAM and ESD PRODUCT(Foam type: PE/EVA/PU/EPE/PP Plastic).Annual production capacity is about 6000 tons.2 bases one in Shen zhen and an other in Huzhou,with total 17 production lines.CYG Management control system: Kingdee / OA / Oracle.CYG have a professional team and technology.More than 30 R&D staff.Through the great variety of our products we provide people with a warm and quiet home and working environment.
