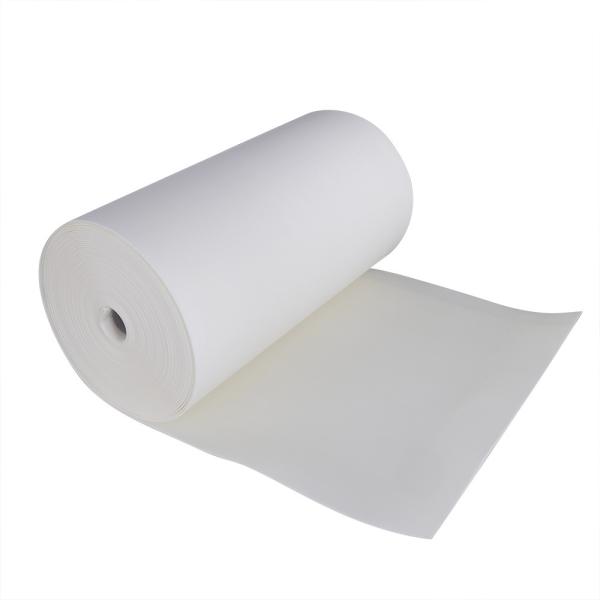

Thermal Insulation IXPE Sheet

Product Categories

Cyg Tefa Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	Greenthermal,thermalsoft,CTF
Model Number :	N/A
Certification :	ISO9001,REACH,ROSH,SGS,IATF16949
Price :	$1.29 - $2.12 / Square Meters
Payment Terms :	L/C, D/P, T/T, D/A, , Western Union, MoneyGram, MoneyGram
Supply Ability :	500 tons per month
Delivery Time :	15-20 days

Add to Cart

Specification

Foam Type: XPE FOAM / XLPE FOAM
Property		Standard	Unit	Value
Density		-	Kg/m³	50.00
Tensile Strength	Transverse	ISO-1798	MPa	0.33~0.36
	Longitudinal			0.48~0.50
Elongation	Transverse	ISO-1798	%	95.20~102.10
	Longitudinal			100.20~109.10
Tearing Strength	Transverse	ISO-8067	Kn/m	1.97~2.14
	Longitudinal			2.48~2.71
Compression 25%		ISO-3386-1	kPa	58.00
Compression 40%		ISO-3386-1	kPa	95.60
Compression 50%		ISO-3386-1	kPa	132.00
Compression Set 25% 0.5H		ISO-1856	%	13.22
Compression Set 25% 24H		ISO-1856	%	4.68
Operating Temperature Range		Internal	°C	(-40,+80)
Water Absorption % Volume (Maximum)		Internal	%	0.40
Thermal Conductivity		JIS A1412-2	W/mK	0.055
Shore - C		ASTM D2240	°C	30
Flammability		FMVSS302	mm/min	-

Additional Information

● All tests were carried out in 23°C ± 2.

● Data represents typical values measured on a 4mm thick specimen and should be considered as guidelines only.

Ixpe Heat Insulation Foam
