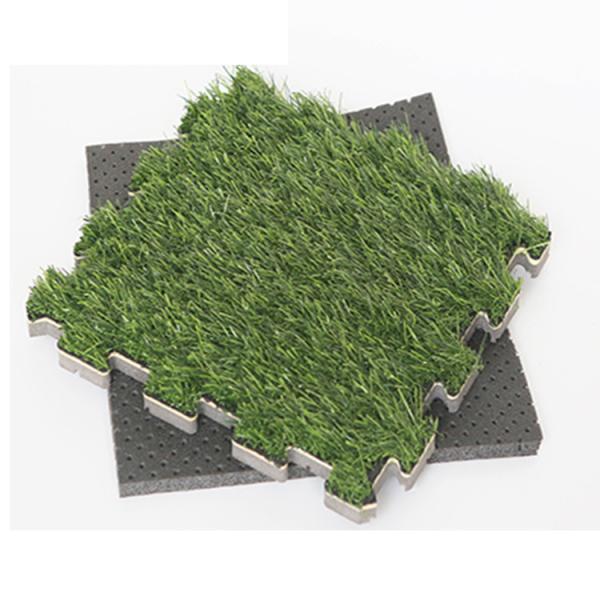

High Quality Artificial grass Turf Shock Absorbing Pads Eco
Friendly XPE Foam for Soccer
XPE is chemically crosslinked PE foam. It is produced in continuous
rolls resulting in a foam product with uniform, closed cells and
smooth skins on both sides. It is light weight, flexible and soft
to touch, yet strong, tough, resilient and resistant to moisture,
many chemicals and temperature extremes.
Features
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Thermal insulation
7. Elastic and flexibility
8. Shock absorption
Specifications
- Foam Type: XPE FOAM / XLPE FOAM
|
| Property | Standard | Unit | Value |
| Density | - | Kg/m³ | 90.00 |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.60~0.62 |
| Longitudinal | 0.72~0.76 |
| Elongation | Transverse | ISO-1798 | % | 135.50~144.30 |
| Longitudinal | 122.70~130.50 |
| Tearing Strength | Transverse | ISO-8067
| Kn/m | 4.28~4.36 |
| Longitudinal | 4.42~4.70 |
| Compression 25% | ISO-3386-1 | kPa | 121.60 |
| Compression 40% | ISO-3386-1 | kPa | 175.60 |
| Compression 50% | ISO-3386-1 | kPa | 233.60 |
| Compression Set 25% 0.5H | ISO-1856 | % | 10.90 |
| Compression Set 25% 24H | ISO-1856 | % | 3.00 |
| Operating Temperature Range | Internal | °C | (-40,+80) |
| Water Absorption % Volume (Maximum) | Internal | % | 0.30 |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.073 |
| Shore - C | ASTM D2240 | °C | 45 |
| Flammability | FMVSS302 | mm/min | - |
Additional Information
● All tests were carried out in 23°C ± 2.
● Data represents typical values measured on a 5mm thick specimen
and should be considered as guidelines only.
Application
Low-density polyethylene foam has many desirable properties
including water-resistance, chemical resistance, energy-absorbance,
buoyancy and cushioning characteristics makes it an ideal material
for shock absorbent application, as cushion or pad of different
lawn or artificial grass.And applied in wide usage as below
Play Area for children
Lawns
Sports Fields
Marriage Lawn
Tennis Courts
Hockey Fields
Football Pitches
Cricket Pitches
Golf
