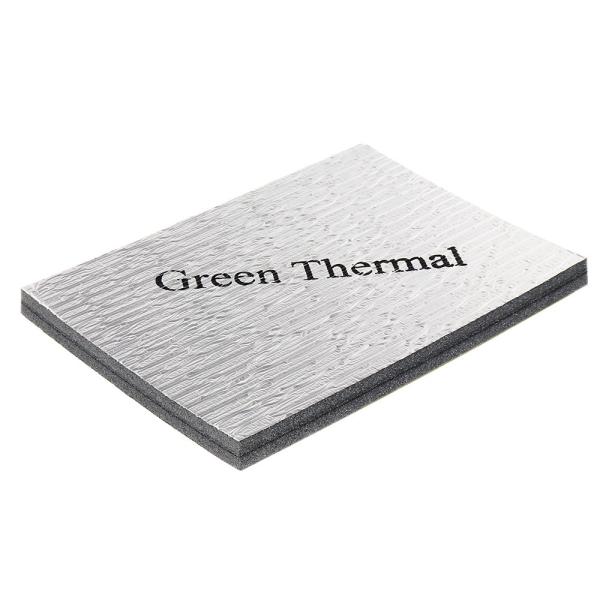

Greenthermal XLPE insulation Foil Foam acoustic plus internal duct
reduce sound
This technology is to laminate foam with aluminum foil face and
self adhesive packing. Low thermal conductivity of our duct
insulation is excellent for thermal insulation, non-hygroscopic
characteristics create consistent and superb insulation properties.
It is effective in preventing dew formation caused by a drastic
change in temperature. CYG foams insulation stands in wide
temperature range from -40°C~80°C.
Specifications
- Foam Type: IXPE FOAM / IXLPE FOAM
|
| Property | Standard | Unit | Value |
| Density | - | Kg/m³ | 100.00 |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.70~0.71 |
| Longitudinal | | | 0.89~0.91 |
| Elongation | Transverse | ISO-1798 | % | 188.20~192.10 |
| Longitudinal | | | 199.30~202.50 |
| Tearing Strength | Transverse | ISO-8067
| Kn/m | 3.76~4.28 |
| Longitudinal | | | 4.76~4.80 |
| Compression 25% | ISO-3386-1 | kPa | 102.80 |
| Compression 40% | ISO-3386-1 | kPa | 152.00 |
| Compression 50% | ISO-3386-1 | kPa | 203.20 |
| Compression Set 25% 0.5H | ISO-1856 | % | 13.60 |
| Compression Set 25% 24H | ISO-1856 | % | 5.20 |
| Operating Temperature Range | Internal | °C | (-40,+80) |
| Water Absorption % Volume (Maximum) | Internal | % | 0.30 |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.073 |
| Shore - C | ASTM D2240 | °C | 46 |
| Flammability | FMVSS302 | mm/min | - |
Feature
– Excellent shock absorption and thermal insulation
– Clean Environment
– Easy fabrication & processing
– Weather & chemical resistance – Excellent durability &
flexibility
Advantages
1. Heat Insulation:

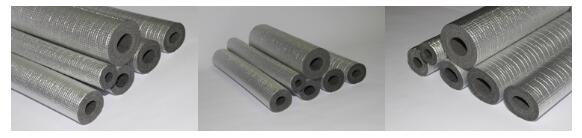

Singlefoaming structure can reduce the loss of heat between air
convections, suitable for making heat preservation pipes and
boards. Good anti-dew capability, suitable for humid environments
like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability: Semi-hard quality foams have good rebound
capabilities after strong impact, suitable for the packing of
instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound
absorption and insulation parts of automobiles, electro-motors and
other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density,
suitable for making deep interior parts like shaping in vacuum and
hot environments, like the air conditioning vaporizing tank of
automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be
mixed with many other materials. It has a wide developing area as a
new environmentally-safe material.
Our services
Factory direct selling with competitve price, sooner leadtime,
better customized services.
Samples in stock can be arranged in one working day.
Company info
CYG TEFA Co., Ltd. Is a subsidiary of Shenzhen Changyuan Croup Co.,
Ltd (stoke code, 600525).
CYG TEFA Co., Ltd, a national high-tech company, established in
December of 2002.; We're the biggest and the most professional
irradiation crosslinked polyethylene conductive foam manufacturer
in China and has the most complete crosslinked polyethylene foam
products. Now we have 3 production bases in Shenzhen, Hangzhou,
Chongqing, 17 production lines of all kinds, with annual production
capacity of 6000 tons; Our main products are Crosslinked PE foam
material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray,
ESD packing material; Beach mat, camping mat, sleeping mat, yoga
mat; Etc.
Applicable range
Construction
Industrial
Automotive
Packaging
Sundry
Sport & Leisure
Other
