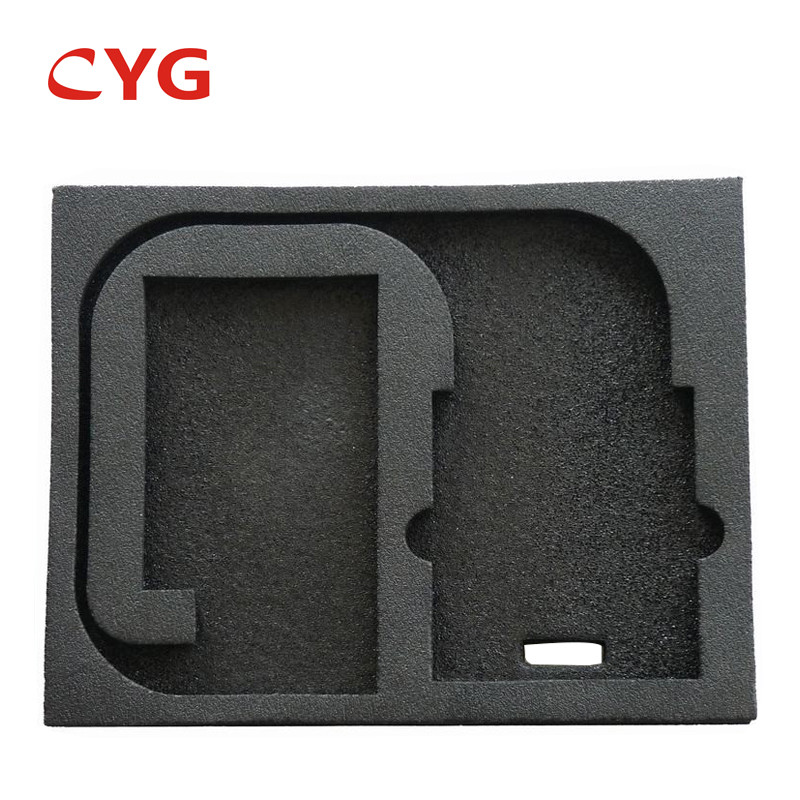

Conductive Packing Materials Esd Box Ixpe Foam Tray
Material Specification of Conductive PE Foam
1.Basic Process
The said product is a close-cell, conductive foam. It is produced
by compounding the PE resin with conductive fillers &
blowing agents to extrude certain sheets,then cross-linking and
foaming. The basic process can be summarized to the following:
1 Pellitizing master batch by compounding PE resin with carbon
black and AC foaming agents;
2 Extrude the said batch to make certain sheets with different
thickness & width;
3 Cross link the said sheets under electric beam;
4 Make the cross linked sheets foam in foaming furnace
Specifications
| Material | IXPE |
| Type | Conductive IXPE Foam |
| Thickness | 1-100mm |
| Color | Black |
| Surface Resistance | 103-109 Ω |
| Certificate | SGS, ISO9001, ROHS |
| MOQ | No MOQ |
| Size | Custom |
| Product Keywords | ESD IXPE foam tray |
Features
1. With conduction path / network inside. excellent anti static
performance;
2. It promotes the rapid release of electrostatic without using the
environmental humidity. anti-static performance is not affected by the environmental humidity;
3. Permanent anti-static;
4. Excellent electrical conductivity, surface resistance: 103-109 Ω;
5. Buffer good performance: independent and fine pore closure;
6. High temperature resistance: IXPE maximum temperature 80℃
7. Chemical resistance: resistant to organic solvents, acids,
bases, etc.;
8. No chemical corrosion: It has no corrosion to the components and
packaging;
9. Heat insulation, sound insulation, water absorption, moisture;
10. Good processing performance, easy molding.
Advantages
1. Medium and high quality are often customized to meet different
market.
2. High Cost effective
3. High fire resistance
4. Good after-sale service
5. Strong capacity: One day one container
6. OEM service, 17 years manufacture experience, sample in stock
can be offered in one working day
Our services
Factory direct selling with low price, sooner leadtime, customized
service.
Comany info
CYG TeFa Co., Ltd has 17 years experience of producting XPE & IXPE
foam. We're the biggest and the most professional irradiation
crosslinked polyethylene conductive foam manufacturer in China and
has the most complete crosslinked polyethylene foam products. Our
main products are Crosslinked PE foam material, IXPE foam, XPE
foam, Conductive IXPE foam; ESD foam tray, ESD packing material;
Beach mat, camping mat, sleeping mat, yoga mat; Etc.
Application Field:
An ideal packing material for optoelectronic devices, integrated
circuit, printed circuit board, communications, military products
etc.
