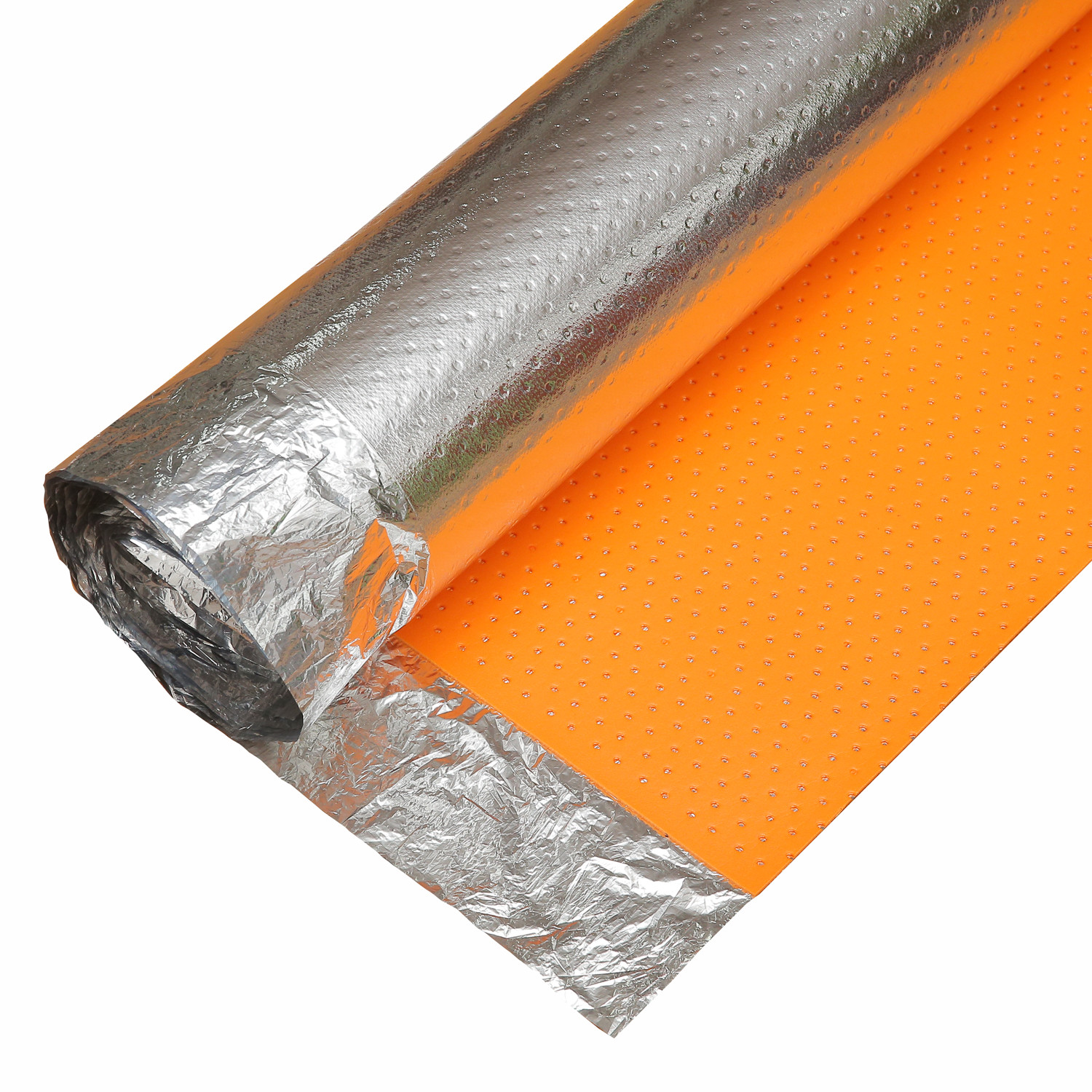

    Ixpe Underlay Soft Foam With Aluminum Foil Heat Insulation Suppliers

    Ask Lasest Price
    Brand Name : CTF
    Model Number : IXPE
    Certification : RoHs,RE, REACH,UL,ISO14001
    Price : $0.56 - $1.06 / Meters
    Supply Ability : 500 tons per month
    • Product Details
    • Company Profile

    Ixpe Underlay Soft Foam With Aluminum Foil Heat Insulation Suppliers

    Ixpe Underlay Soft Foam With Aluminum Foil Heat Insulation Suppliers

    Performance

    Raw material: LDPE, PE foam+Alu foil
    Density: 25~333kg/m3
    Length: customized
    Wide: 70~1800 mm
    Thickness:

    xpe 2~3mm 3~12mm
    Ixpe 0.1~0.5mm 0.5~3mm, 3~10mm
    Color: black,white and gray,other colors can be customized
    Shore hardness: 10~80 degree
    Reflective:96%~97%
    Structure:Closed cell
    Surface smooth: Alu
    Flammability:B1 grade
    Refractoriness:100-150 degree
    Thermal Conductivity:0.040~0.095 w/m.k
    Water Absorption:(23degree,24h) 0.2~0.6%
    Tearing Strength: 0.2~1.8 KN/m
    Elongation at break :100%~240%
    Tensile Strength: 0.2~1.6 Mpa
    Compressed distortion: 2%~10%
    Size change rate: -4%`-8%
    Thermal conductivity: 0.040 ~0.095 w/m.k
    Certificate: ISO9001,REACH,ROSH,IATF16949,CE
    Packaging:roll, tape, gasket or seal formats


    1. Medium and high quality are often customized to meet different market.
    2. High Cost effective
    3. High fire resistance
    4. Good after-sale service
    5. Strong capacity: One day one container
    6. OEM service, 17 years manufacture experience, sample in stock can be offered in one working day

    Products features


    PE foam+pure aluminium foil (coated aluminum foil)

    Reflecting up to 97% of radiant heat

    Excellent fire properties

    Excellent acoustic insulating properties

    Environmentally/Eco friendly and fibre-free


    Product Description


    Foam Dimension-the thickness ,width and length ,they all can be customize.

    Customization Aluminum ,PE foam can laminated with pure aluminum foil or coated aluminum foil etc


    Normal thickness

    one foaming1-10mm, 100mm after lamination

    Normal width

    1000mm,1200mm,1300mm,1500mm

    Normal length

    50m,100m,150m,200m


    Product Testing


    Foam Density (kg/m3)

    Shore Hardnes (°)

    Water Absorbtion (g/cm2)23 ±2℃,24h

    Thermal Conductivity (w/m.k)

    200±30

    60-70

    ≤0.2

    ≤0.095

    125±15

    50-60

    ≤0.2

    ≤0.084

    100±10

    45-50

    ≤0.3

    ≤0.073

    66.7±8

    35-45

    ≤0.3

    ≤0.065

    50±6

    30-35

    ≤0.4

    ≤0.055

    40±4

    25-30

    ≤0.4

    ≤0.049

    33.3±3

    18-25

    ≤0.5

    ≤0.045

    28.6±3

    13-18

    ≤0.5

    ≤0.040


    Product Application


    Widely used In the fields of Insulation, Sealing and Cushioning, we supply PE foam products in roll, tape, sheet available in areas of


    Thermal absorption

    Sound absorption

    Flame retardant

    Product Overviews

    Ixpe Underlay Soft Foam With Aluminum Foil Heat Insulation SuppliersIxpe Underlay Soft Foam With Aluminum Foil Heat Insulation Suppliers
